Maxhub – 220-inch LED Display Terminal

$78,599.00

8 in stock

Login as a reseller to see discounted price.
This product can only be quoted by resellers.
SKU: lw220 Categories: , ,

Description

Maxhub – 220-inch LED Display Terminal

MAXHUB会议平板

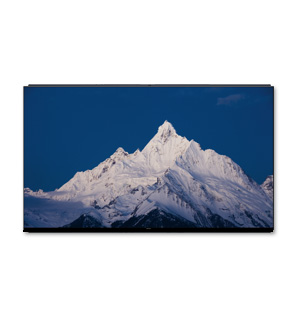

MAXHUB Integrated LED Wall
Born For Large Scenes Presentation
A MAXHUB Integrated LED Wall is the latest evolution of our founding design. It comes in from 110 to 220 inches that fits perfectly with meeting rooms, lecture halls and other large scenes. The outstanding interaction design and mirroring technology of MAXHUB make your presentations become smarter.

Available in
110, 120, 138, 150, 165, 180, 220 inches

All-in-One Function in Ultra-light, Ultra-thin Design

3-in-1 Board
Integrates a power supply, a receiving card and a hub board, with no external devices

Built-in Android
Supports smart features e.g. playing multimedia visual aids

30% Lighter
Down to 4.8kg per cabinet, around 30% lighter than average weight* in the industry

28.5mm
The thickness is reduced down to 28.5mm

MAXHUB会议平板

*Courtesy of MAXHUB Marketing Data Analysis Center

A Seamless, Spectacular, Sparkling Display That Provides Immersive Experience
A MAXHUB Integrated LED Wall delivers optimized grayscale display performance, even in low brightness, providing the audience with an immersive feast for eyes.

1080P
Full HD Resolution

High Grayscale
in Low Brightness

Delivering Simplicity And Efficiency
Plug & play system, only one button to turn on/off.

MAXHUB会议平板

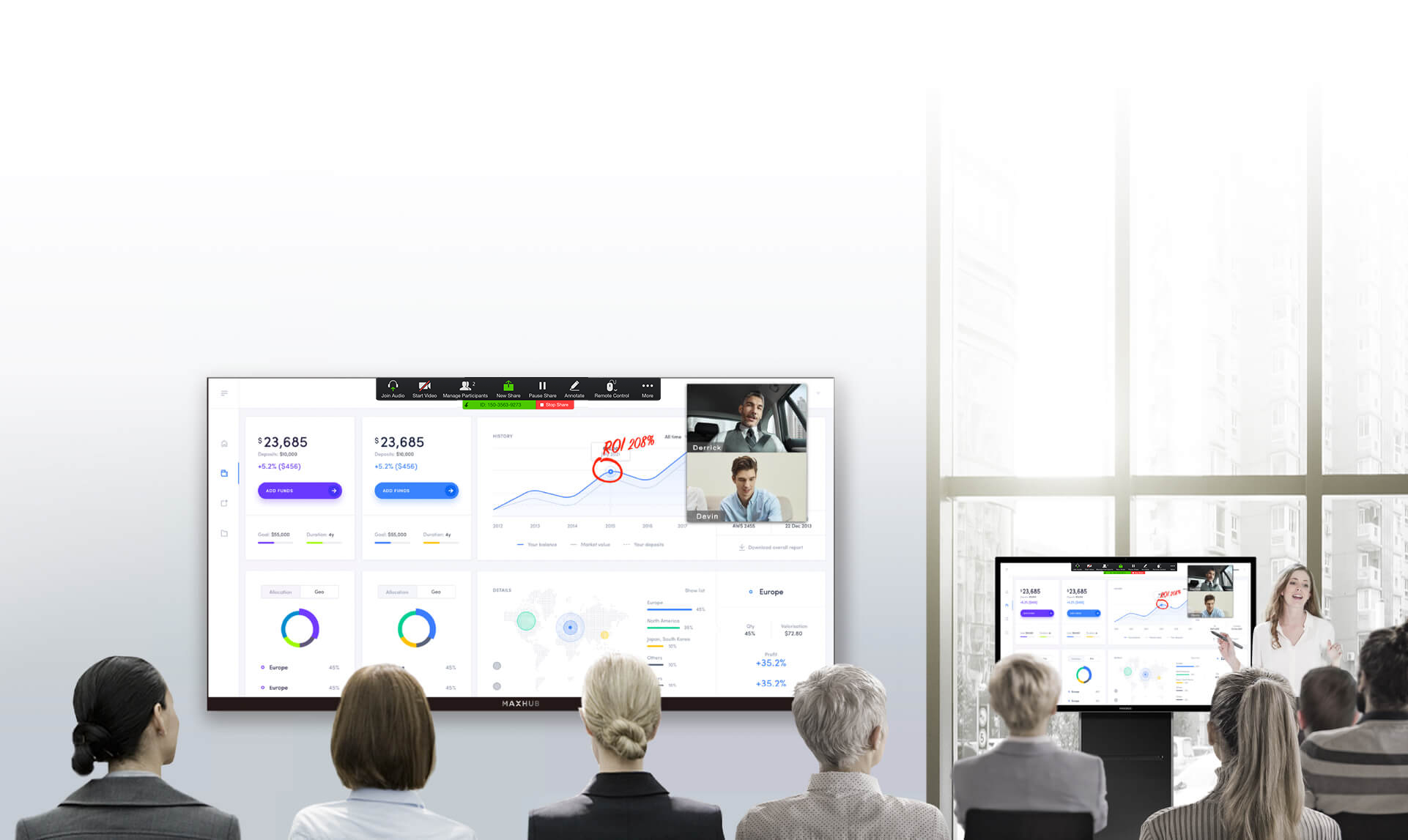

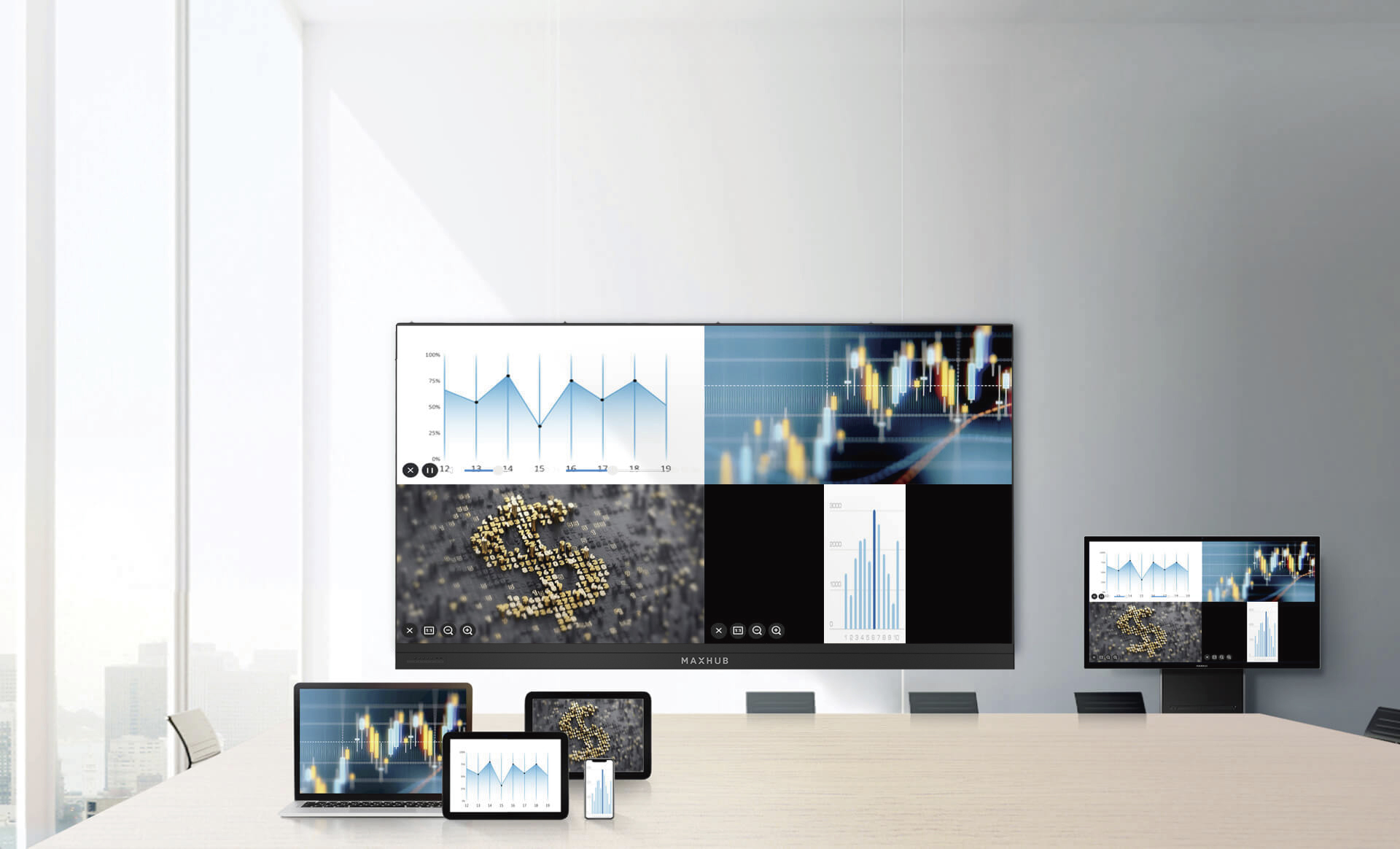

Wireless, Multi-device Interaction Increases Engagement
Real-time screen-share from up to 4 devices including PCs, Macs, i(Pad)OS devices and Android devices. Annotate from multiple devices with synchronized writing. Everyone could easily start sharing their ideas.
4 Devices Wireless Connection

Annotate with Synchronized Writing

MAXHUB会议平板

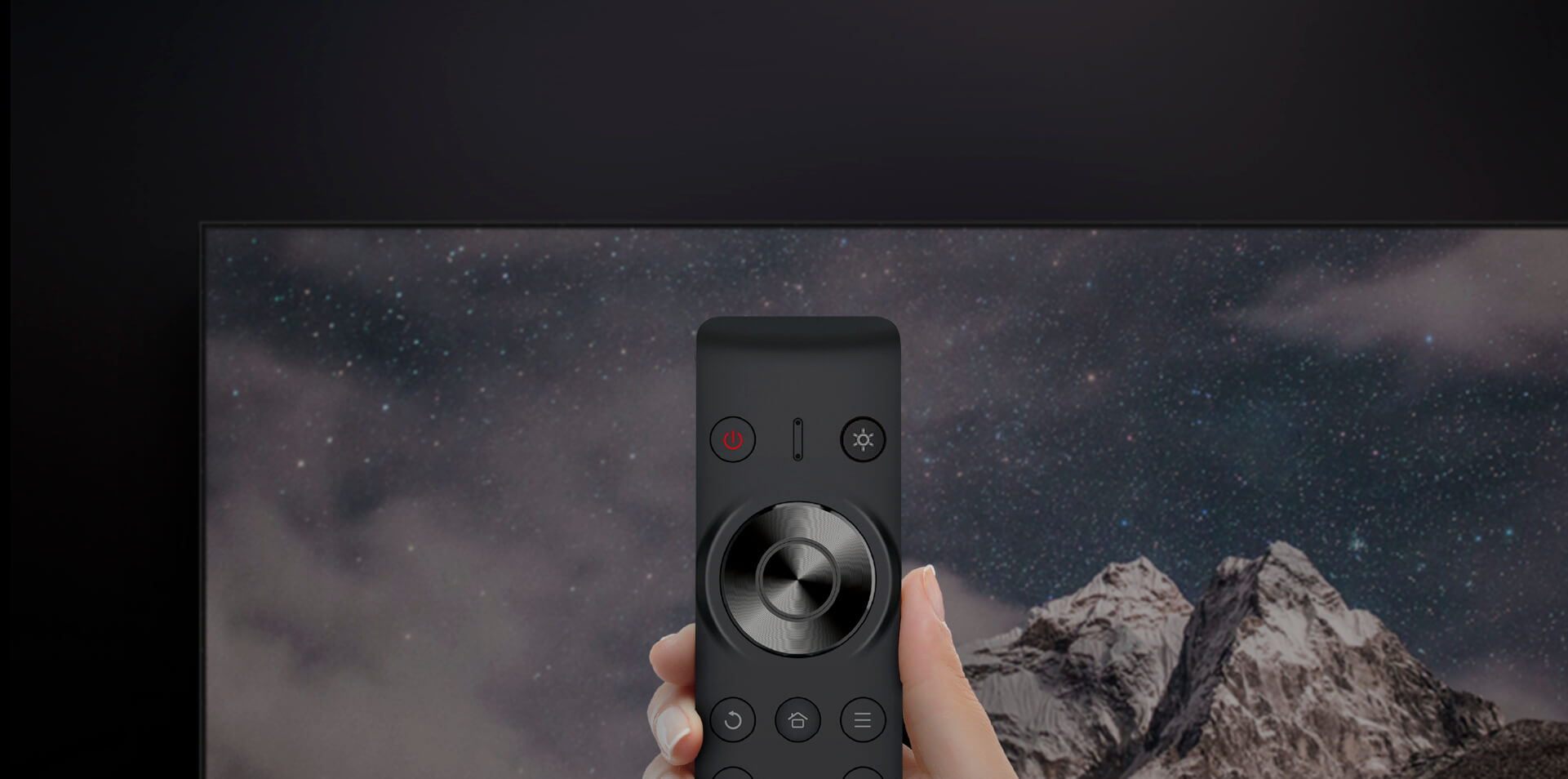

Comes with A Smart Control to Access Settings
Brightness

Color Temperature

Contrast Ratio

Input Signal

Aspect Ratio

MAXHUB会议平板

Supports Full-front Service and Easy Maintenance

Hot Swapping Repair
Supports replacing modules
while working.

One-stop Service
Unified hardware & software
technical support

Streamlined Maintenance
Integrated 3-in-1 hub board replacement solves problems quickly

MAXHUB会议平板

Total Solution for Various Scenarios
Enjoy an elevated confidence with a MAXHUB Smart Podium in an auditorium. Or with a MAXHUB interactive flat panel, start a teleconference right away in a meeting room
Lecture Hall

Meeting room

Showroom

Auditorium

MAXHUB会议平板

  • Specification LM110M07 LM110M03 LM138M07 LM138M06 LM165M07 LM220M07
    Size 110″ 110″ 138″ 138″ 165″ 220″
    Brigtness (nit) 100-550 100-550 100-550 100-550 100-600 100-600
    Refresh Rate 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
    Resolution 1920 x 1080 1280 X 720 1920 X 1080 1600 X 900 1920 X 1080 1920 X 1080
    Power Consumption(MAX/Ave)(W/display) 2080/800 1280/500 3000/1200 2000/800 2880/1150 5120/2000
    Viewing Angle(H/V) 160˚/140˚ 160˚/140˚ 160˚/140˚ 160˚/140˚ 160˚/140˚ 160˚/140˚
    Overall Dimension(mm) 2453 x 1502 x 31 2453 x 1502 x 31 3063 X 1845 X 31 3063 X 1845 X 31 3673 X 2188 X 31 4893 X 2874 X 31
    Overall Dimension(Inches) 96.57″ x 59.13″ x 1.22″ 96.57″ x 59.13″ x 1.22″ 120.59″ x 72.64″ x 1.22″ 120.59″ x 72.64″ x 1.22″ 144.61″ x 86.14″ x 1.22″ 192.63″ x 113.15″ x 1.22″
    Weight(kg) 95 95 140 140 190 330
    Weight(lb) 209.44 209.44 308.65 308.65 418.88 727.53
    Specification LM120M07 LM120M03 LM150M07 LM150M06 LM180M07
    Size 120″ 120″ 150″ 150″ 180″
    Brigtness (nit) 100-550 100-550 100-550 100-550 100-550
    Refresh Rate 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
    Resolution 1920 X 1080 1280 X 720 1600 X 900 1920 X 1080 1920 X 1080
    Power Consumption(MAX/Ave)(W/display) 2080/800 1280/500 3000/1200 2000/800 2880/1150
    Viewing Angle(H/V) 160˚/140˚ 160˚/140˚ 160˚/140˚ 160˚/140˚ 160˚/140˚
    Overall Dimension(mm) 2678 X 1630 X 28.5 2678 X 1630 X 28.5 3344 X 2004 X 28.5 3344 X 2004 X 28.5 4010 X 2379 X 28.5
    Overall Dimension(Inches) 105.43″ x 64.17” x 1.12″ 105.43″ x 64.17” x 1.12″ 131.65″ x 78.90” x 1.1″ 131.65″ x 78.90” x 1.1″ 157.87″ x 93.66” x 1.12″
    Weight(kg) 95 95 143 143 200
    Weight(lb) 209.44 209.44 315.26 315.26 440.92

138″ LED Display Terminal

165″ LED Display Terminal

220″ LED Display Terminal

Pixel Pitch
1.5mm
1.9mm
2.5mm

Screen Display Size
3050mm(Width)
1715mm(Height)
3660mm(Width)
2058mm(Height)
4880mm(Width)
2744mm(Height)

Display Ratio
16:9
16:9
16:9

Average Power Consumption
1.2KW
1.15KW
2KW

Luminance
50-500cd/㎡ Adjustable
50-500cd/㎡ Adjustable
100-500cd/㎡ Adjustable

Contrast Ratio
4000 : 1
4500 : 1
5000 : 1

Viewing Angle
Horizontal 160° Vertical 140°
Horizontal 160° Vertical 140°
Horizontal 160° Vertical 140°

Screen Body Material
Aluminum
Aluminum
Aluminum

Input Port
HDMI
HDMI
HDMI

Installation Method
TV Base/Wall Mount/Ceiling Mount
TV Base/Wall Mount/Ceiling Mount
TV Base/Wall Mount/Ceiling Mount

Operational Method
Turn On with One Click
Turn On with One Click
Turn On with One Click

Life Length
100000h
100000h
100000h

Maintenance
Front Disassembly Maintenance
Front Disassembly Maintenance
Front Disassembly Maintenance
