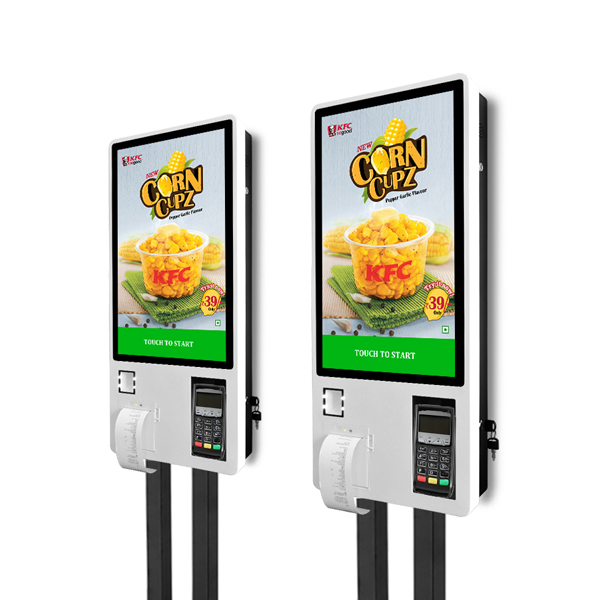

24inch Self Ordering Kiosk

100 in stock

  • Shorter lines
  • Satisfied customers
  • Reduce labor costs
  • Better use of human resources
This product can only be quoted by resellers.
SKU: 240D-01A Category:


MODEL 240D-01A
General specification Motherboard J1900 (i3, i5, i7, android are optional) Running memory 4G (Maximum capacity8G)
Storage memory 64GB SSD( 128GB optional) Operating system Windows 7 (Windows 10 optional)
Network support Gigabit network
Panel specification Screen specification 24 inch full in-cell touch panel Screen type TFT-LCD
Backlight type WLED Screen size 569.2×341.1 mm
Resolution 1920*1080 Contrast 3000:1
Perspective H:178°,V:178° brightness 250nits (No touch) , 225nits (Have a touch)
Touch technology Projected capacitance Touch Points 10point
Operating Voltage DC 12v Operating temperature 0°C ~ 40°C, 20% ~ 80% RH.
Storage temperature -20°C~ 60°C, 10% ~ 95% RH Interface Type VGA, HDMI, USB, LAN
Motherboard specs Processor Onboard quad core J1900 CPU, Default frequency 2.0GHz, Turbo frequency 2.42GHz Chipset CPU integrated
Extension port 2xMini-PCIE Display CPU integrated HD Graphics Display core
Memory type 1xSO-DIMM DDR3L 1066/1333MHz Memory, Max.8GB Storage interface 1*SATA2.0, 1*mSATA
BIOS AMI 64Mb Flash ROM Plate type Mini-ITX 170*170mm
Audio 2与ACK, ALC662 Sound card chip
The printer Printing method Thermal printing Resolution 203 dpi (8 dots/mm)
Paper width 80 (mm) Print width 72 (mm)
Print density Level 1-4 adjustable Communication Interface RS-232/USB
Printing speed 170 (mm/s) max Detection function Temperature detection and paper end sensor
Operating Voltage 24V DC Operating temperature -10°C~ + 50°C/10% RH ~ 80% RH
Cutter life 70Million times TPHlife 50km
Scanning Operating Voltage 5v DC Operating temperature -20°C To 60°C
Working current 75mA-100mA Reading mode CMOS
Support code system 1D SUPPORT: industrial 25. standard, matrix 25、china post 25. code 11. codabar、MSI/Plesseys code39(standard 39 & full ASCII code 39). code 32% code93. code128. UPC A. UPCE、EAN13、EAN8、UPC/EAN、add-on 2/5、ISBN、ISSN、GS1(RSS)RSS- 14、LIMITED. EXPENDED, include GS1 STACK2D SUPPORT: pdf417( data matrix,qr code . ect.
Reading accuracy >8mil Fill light LED (6000K) 90lux @100mm
Light source intensity 265 LUX (130 mm) Scanning angle Omnidirectional decoding
Scanning speed 30Times/second Resolution 640*480 pixel
Result feedback Buzzer
Environmental parameters Working environment Indoor Operating temperature 0°C – 40°C
Working humidity 10%-90%No condensation Storage temperature -20°C -50°C
Storage humidity 10%-90%No condensation
Electrical specs Input voltage Rated voltage 90 (V/ac) -264 (V/ac) 50/60 (Hz) Maximum power consumption 430W
Characteristics Exterior Black spray with black column after front white spray Housing material Sheet metal front shell + galvanized mounting plate + sheet metal back shell + sheet metal column
