- Shorter lines
- Satisfied customers
- Reduce labor costs
- Better use of human resources

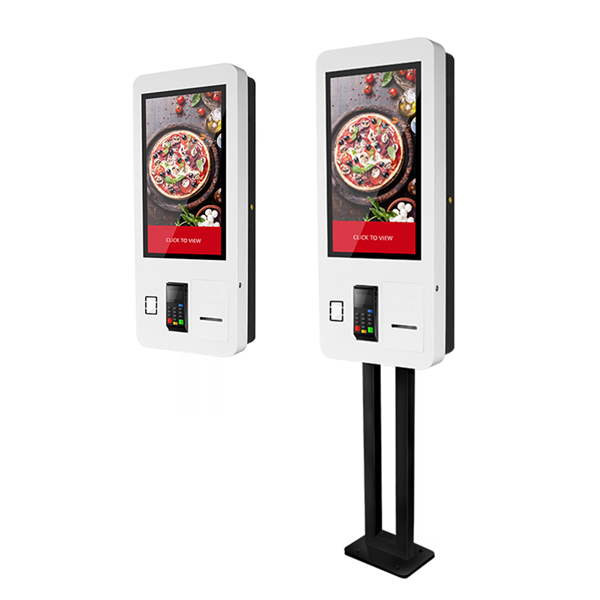

27inch Self Ordering Kiosk
100 in stock
Description
| MODEL | 270D-01A | |||
| General specification | Motherboard | JI 900 (i3「i5, i7, android are optional) | Running memory | 4G (Maximum capacity8G) |
| Storage memory | 64GB SSD( 128GB optional) | Operating system | Windows 7 (Windows 10 optional) | |
| Network support | Gigabit network | |||
| Panel specification | Screen specification | 27 inch A+ Original Panel | Screen type | LCD module a-si TFT-LCD |
| Backlight type | WLED | Display size | 597.888*336.312mm (W*H) | |
| Resolution | 1920*1080 | Contrast | 1000:1 | |
| Perspective | 89/89/89/89 0yp.)(CRZ10) | brightness | 300CTYP) | |
| Touch technology | Projected capacitance | Number of contacts | lOpoint | |
| Operating Vbltage | DC5v | Operating temperature | 0°C – 50V 20% 丑 8Q% RH. | |
| Storage temperature | -20°C~ 60°C, 10% ~ 95% RH | Interface Type | VGA, HDMI | |
| Motherboard specs | Processor | Onboard quad core J1900 CPU, Default frequency 2.0GHzJurbo frequency 2.42GHz | Chipset | CPU integrated |
| Extension port | 2xMini-PC IE | Display | CPU integrated HD Graphics Display core | |
| Memory type | 1xSO-DIMM DDR3L 1066/1333MHz Memory Max.8GB | Storage interface | 1*SA7A2.0, 1*mSATA | |
| BIOS | AMI 64Mb Flash ROM | Plate type | Mini-ITX170*170mm | |
| Audio | 2*JACK, ALC662 Sound card chip | |||
| The printer | Printing method | Thermal printing | Resolution | 576 dpi (8 dots/mm) |
| Paper width | 80 (mm) | Print width | 72(mm) | |
| Communication Interface | USB | Printing speed | 150 (mm/s) max | |
| Detection function | Temperature detection and paper end sensor | Operating Voltage | 24V DC | |
| Operating temperature | -10°C- + 50°C/10% RH ~ 80% RH | TPHlife | 50km | |
| Scanning | Operating Voltage | 5v DC | Operating temperature | ■20°C lb 60°C |
| Working current | 75mA-100mA | Reading mode | CMOS | |
| Support code system | 1D SUPPORT: industrial 25s standard、matrix25^ china post 25^ code 1h codabar^ MSI/Plesseys code39($tandard 39 &full ASCII code 39). code 32. code93. sde128、UPCA、UPCE、EAN13. EAN8、UPC/EAN. add-on 2/5. ISBN. ISS队 GS1(RSS) RSS- 14、LIMITED. EXPENDED. Include GS1 STACK2D SUPPORT: pdf417, data matrix,qr code. ect. | |||
| Reading accuracy | k8mil | Fill light | LED (6000K) 90lux @100mm | |
| Light source intensity | 265 LUX (130 mm) | Scanning angle | Omnidirectional decoding | |
| Scanning speed | 30Times/second | Resolution | 640*480 pixel | |
| Result feedback | Buzzer | |||
| Environmental parameters | Working environment | Indoor | Operating temperature | 0°C-409C |
| Working humidity | 10%-90%No condensation | Storage temperature | -20BC -50°C | |
| Storage humidity | 10%-90%No condensation | |||
| Electrical specs | Input voltage | Rated voltage 90 (V/ac) -264 (V/ac) 50/60 (Hz) | Maximum power consumption | W140W |
| Characteristics | Exterior | Black spray + black column after front white spray | Housing material | Sheet metal front shell + galvanized mounting plate + sheet metal back shell |
| Package | Honeycomb box | |||
