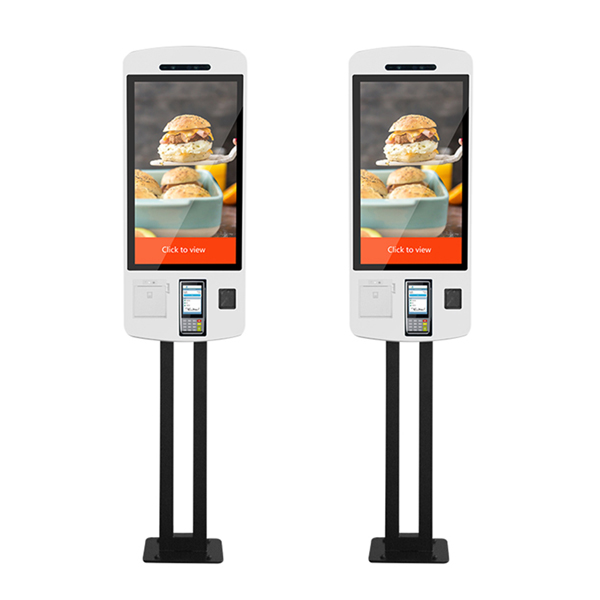

32inch Self Ordering Kiosk

100 in stock

  • Shorter lines
  • Satisfied customers
  • Reduce labor costs
  • Better use of human resources
This product can only be quoted by resellers.
SKU: 320D-01B Category:


MODEL 320D-01B
Host configuration The main board Android RK3288 (PC is optional) Run a memory 2G/4G (optional)
Storage memory 16G/32G, 64G (optional) Operating system Android 6.0 (Android 7.1, Windows optional)
Network support 3G, Ethernet, support WiFi/ bluetooth 4.0, wireless peripheral extension.4G module optional Processor Lucic micro RK3288 quad-core l.8g
Chipset HZ cortex-A17 TF card TF card extensions are supported
According to GPU Mail-T764 Memory type Built-in EMMC, up to 64 gb optional
USB interface 2* USB HOST, 4* USB socket Decoding resolution Maximum support is 3840*2160
A serial port Default 3 TTL serial sockets (RS232 ar 485) 3G Built-in WCDMA,EVDOf4G full network, support voice calls
Ethernet 10M/100M/1000M adaptive Ethernet An WDS output 1 single/double circuit, can directly drive 50/60hz LCD screen
EDP output Can directly drive a variety of resolution EDP interface LCD HDMI output Support 1080P@120Hz, 4kx2k@60Hz output
Audio output Support left and right sound channel output, built-in dual 8R/5W amplifier RTC real-time clock Support
Time swiKh machine Support System upgrade Support SD card/PC update
Power supply voltage DC-12v
Display Screen size 32 inch full in-cell touch panel Screen type TFT-LCD
Backlight type WLED Screen size 476MM*781.5MM
Resolirtion of the 1920*1080 Contrast 3000:1
Perspective H:178° V: 178° Non-touch 3S0cd/m2
Brightness 300 cd/m2 Degree of color 16.7M
Response time 15ms Touch technology Projected capacitance
Contact points 10 point Working voltage DC12v
Working temperature OX ~ 40°C, 20% – 80% RH. Storage temperature -20°C~ 60°C 10% – 90% RH
Interface lype HDMI, VGA,DVI Power supply voltage AC input 100-240Vacz 50/60Hz@1.5A
Scanning World ng voltage 5v DC Working temperature -20* to 60 SC
Working current 140 mA Read mode CMOS
Read the precision 28mil Fill light LED (65OOK)
Intensity of light source 265 LUX (130 mm) Scanning Angle 80。(H) x64° (V)
Internee support USB, RS232 Resolution of the 640*480 pixel
Result feedback buzzer
Support code system 1D: UPC, EAN( Code 128, Code 39, Code 93, Code 11, Matrix 2of 5, Codabar Interleaved 2 of 5, MSI Plessey, GSI DataBar; China Postal, Korean Postal, etc

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQKAztec,Hanxinf eet.

Face recognition payment camera Overall dimensions 180.8*39.5*38.4mm Power consumption 3.2-4W
Interface USB Working distance 0.28 1 m
Working temperature 10-40X, 0-80RH Accuracy of measurement ±3mm@0.8m
Output data Depth Data type: Raw Data 16Bit. Color data: MJPEG/RGB/YUV Depth of the image Resolution/frame rate: 640* 480@30fps 320 * 240 @ 30 FPS FOV: H60 DHSf V47 DHS
Infrared image Resolution/frame rate: 640* 480@30fps FOV:H60DHSrV47DHS Color chart Resolution/frame rate: 1920* 1080@30fps 1280 *720 @30 FPS
